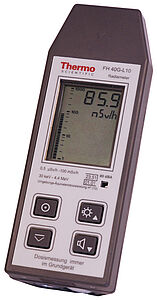

Thermo FH 40 G-L10 Survey Meter

The FH 40 G-L10 is a digital survey meter for many different radiation protection applications. It incorporates an energy filtered proportional detector. It meets the energy response behaviour of the new units ambient dose equivalent and ambient dose equivalent rate (H*(10)). Measured values are shown on a clear, backlit LCD display including a 3 decade logarithmic bargraph. An intelligent algorithm detects and indicates small changes in dose rate, suppressing random noise.

The FH 40 G-L10 records up to 256 data points containing measurement number, date, time and dose rate. The stored values can be read directly from the display of the device and can also be transferred to a PC via a serial IR interface. The IR interface cable and the software are available as options. The survey meter is rugged, light-weight and easy to operate with large keys.

Key Features

• Serves in an energy range of 30 keV to 4.4 MeV
• Fitted with an internal counter tube
• Provides measuring ranges for radiation protection levels:
  – Dose: (0.1 … 1000) μSv
  – Dose rate: 10 nSv/h … 100 mSv/h
• No external probe or cable required for gamma dose rate measurements
