NORMI^® RAD/FLU

For acceptance and constancy tests of fluoroscopy and radiography.

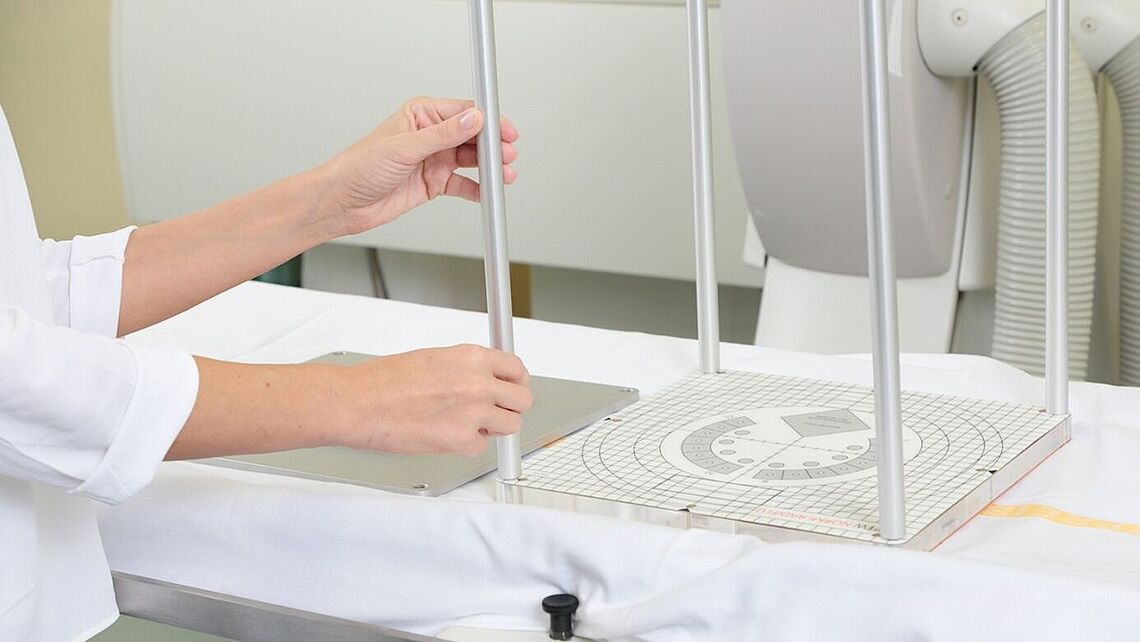

The structure plate includes a copper step wedge for testing the dynamic range, a resolution test pattern, low contrast and detail test elements. In addition, the entrance dose can be measured with a NOMEX Multimeter.

Key Features

Check all parameters in one shot
Convenient adjustment of over-couch tubes, under-couch tubes and C arms
Includes an attenuation plate for patient simulation
Complies with DIN 6868-4 and 6868-150

Technical Specifications

L981309 NORMI RAD/FLU Set Al (200 x 200) mm

This set includes a (200 x 200) mm structure plate (T42027), 25 mm aluminum absorber, and accessories.

Structure plate: 200 mm x 200 mm x 19 mm (17 mm PMMA + 1.5 mm copper + 0.5 mm front sheet)

Al Absorber: 163 mm x 163 mm x 25 mm

L981302 NORMI RAD/FLU Set Al (300 x 300) mm

This set includes a (300 x 300) mm structure plate (T42032), 25 mm aluminum absorber, and accessories.

Structure plate: 300 mm x 300 mm x 19.5 mm (17 mm PMMA + 0.5 mm grid plate+ 1.5 mm copper + 0.5 mm front sheet)

Al Absorber: 163 mm x 163 mm x 25 mm (mandatory for the use during acceptance test)

L981301 NORMI RAD/FLU Set PMMA (300 x 300) mm

This set includes a (300 x 300) structure plate (T42032), one 30 mm thick PMMA absorber, one 1 mm thick copper absorber, and accessories.

Structure plate: 300 mm x 300 mm x 19.5 mm (17 mm PMMA + 0.5 mm grid plate+ 1.5 mm copper + 0.5 mm front Sheet)

PMMA Absorber: 300 mm x 300 mm x 30 mm

Cu Absorber: 300 mm x 300 mm x 1 mm

Dynamic steps (for determination of the dynamic range)

17 copper steps with a thickness from 0 mm to 3.48 mm

Depth of the recesses in the PMMA plate for copper steps 1 to 8 is 13 mm, for copper steps 10 to 17, it is 5 mm

Resolution test pattern (for determination of the line pair resolution)

X-ray test pattern with 100 μm of lead and a spatial resolution range up to 5 lp/mm

In the resolution test area, the thickness of the copper plate is only 1.1 mm

8 detail contrast elements (for determination of the contrast resolution at the operating point)

Circular elements with a diameter of 10 mm and depths of 0.4 mm to 4.0 mm

16 detail contrast elements (for assessment of the contrast resolution)

Circular elements with a diameter of 4 mm and a depth of 2.5 mm in each step of the dynamic steps

L981309 NORMI RAD/FLU Set Al (200 x 200) mm

L981301 NORMI RAD/FLU Set PMMA (300 x 300) mm

L981302 NORMI RAD/FLU Set Al (300 x 300) mm

L981473 NORMI holder for bucky wall stand
