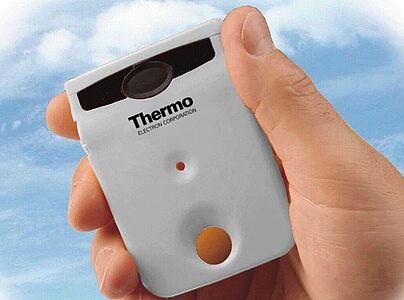

Thermo EPD^® Mk2 Personal Dosemeter

Key Features

• Highly sophisticated multi-functional personal radiation monitor for radiotherapy, nuclear medicine and X-ray diagnostic
• Modern detector technology: PIN diode detector
• Measures H_p(10) and H_p(0.07) according to ICRP
• Programmable by external readers
• Various audible and visual alarms configurable
• All readers are supplied with the software EasyEPD2
• Display units: Sv and rem
• Dose indication range: 0 µSv … 16 Sv
• Dose measuring range: 10 µSv … 10 Sv
• Dose rate range for dose measurement: 0 µSv/h … 4 Sv/h
• Display resolution: 1 µSv
• Energy range: 15 keV … 10 MeV (gamma and X-ray) 250 keV … 1.5 MeV (beta)
• Dose alarm thresholds: 2 x H_p(10) and 1x H_p(0.07) values, programmable
• Dose rate alarm threshold: 2 x H_p(10) and 1x H_p(0.07) values, programmable
• Power supply: 1 battery AA, alkal. 1.5 V or 3.6 V LTC
• Acoustic alarm: approx. 98 dB(A) at 20 cm distance
• Dimensions: 85 mm x 63 mm x 19 mm
• Weight (incl. battery): approx. 95 g (with clip)
