QUICKCHECK webline

Beam on, off it goes.

Suitable for all linear accelerators and radiation fields, including flattening filter free (FFF) radiation
Standalone, truly wireless operation
Fully automatic workflow using predefined worklists
Integrated auto functions (start, stop, stand-by, shutdown, calendar)
Immediate display of measurement results via large, full-color display and LED status indicators
Gold standard ionization chamber technology
Password-protected access

Supported QA Procedures

X-ray output constancy
Electron output constancy
Photon beam profile constancy
Electron beam profile constancy
Electron beam energy constancy

Application Highlights

Constancy check of all essential beam parameters in one go and at any gantry angle
Built-in beam energy check
Field sizes 10 x 10 and 20 x 20 cm²
Automatic air density correction
All major dosimetry protocols included
Vendor-specific gantry mounts for rotational testing optionally available

Faster. Easier. Safer.

Rapid implementation
Quick installation procedures and short training times. QUICKCHECK^webline® is a cable-free, truly wireless system with all required essentials built right in for easy operation and convenience. After an initial setup, it is ready for everyday use. Setup once, usage day after day.
Saves time on routine tasks
With its fully automatic workflow and its standalone, PC-free operation, QUICKCHECK^webline® makes it faster and easier, even for occasional users, to complete their routine tasks. No extra time is required to set up the system. Every "morning warm-up" team will love it.
Supports clinical workflow
Measurement, retrieval and analysis at the users’ convenience. As a standalone device, QUICKCHECK^webline® stores all data collected in its internal memory for later review and documentation purposes. Reports can be saved as a PDF file for easy archiving and distribution within your clinical network.
Makes routine tasks safer
Its automated workflow, integrated password protection and self-diagnostic tools help to eliminate operator errors as they may occur in the "heat of battle". QUICKCHECK^webline® simply gives the peace of mind that all tests are thoroughly performed - just as required!

Service contracts for QUICKCHECK^webline®: Bronze, Silver, Gold

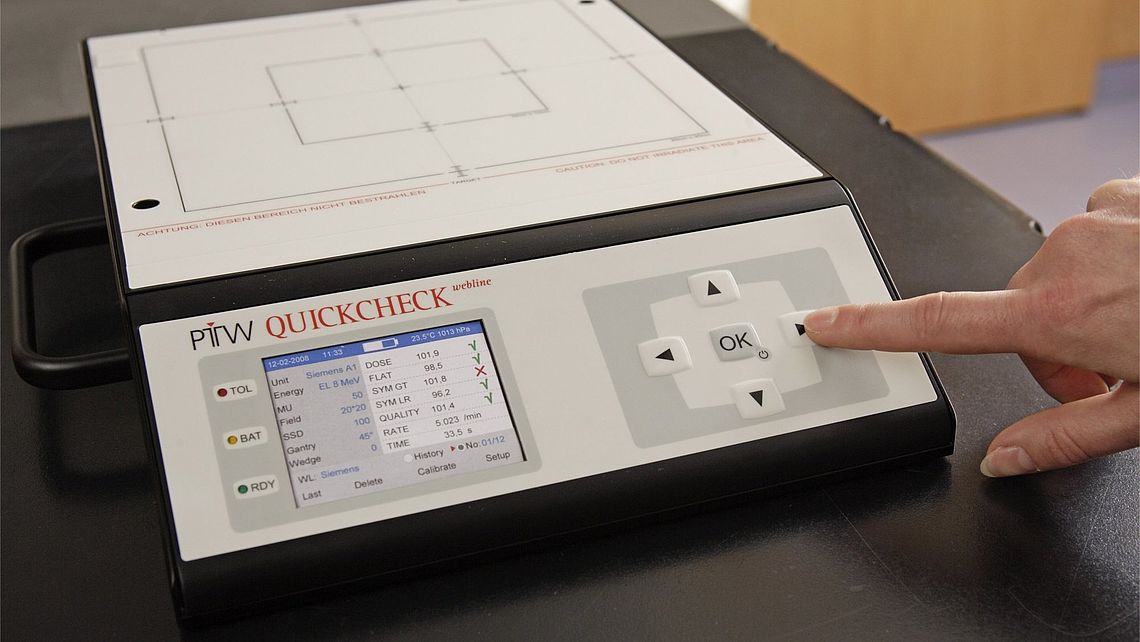

QUICKCHECK webline Constancy Test Device - Truly wireless, PC-free measurement device with all functionalities built right in for easy operation

1 / 7

Truly wireless, PC-free measurement device with all functionalities built right in for easy operation

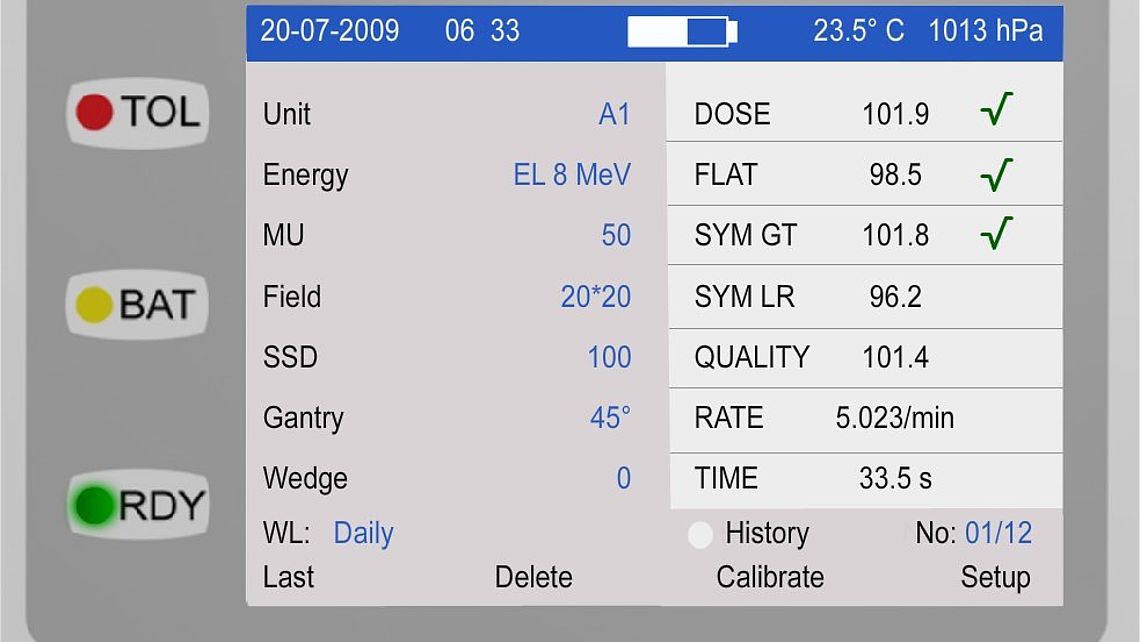

QUICKCHECK webline Constancy Test Device - Immediate, real-time feedback on measurement results via large TFT display with LED status indicators

2 / 7

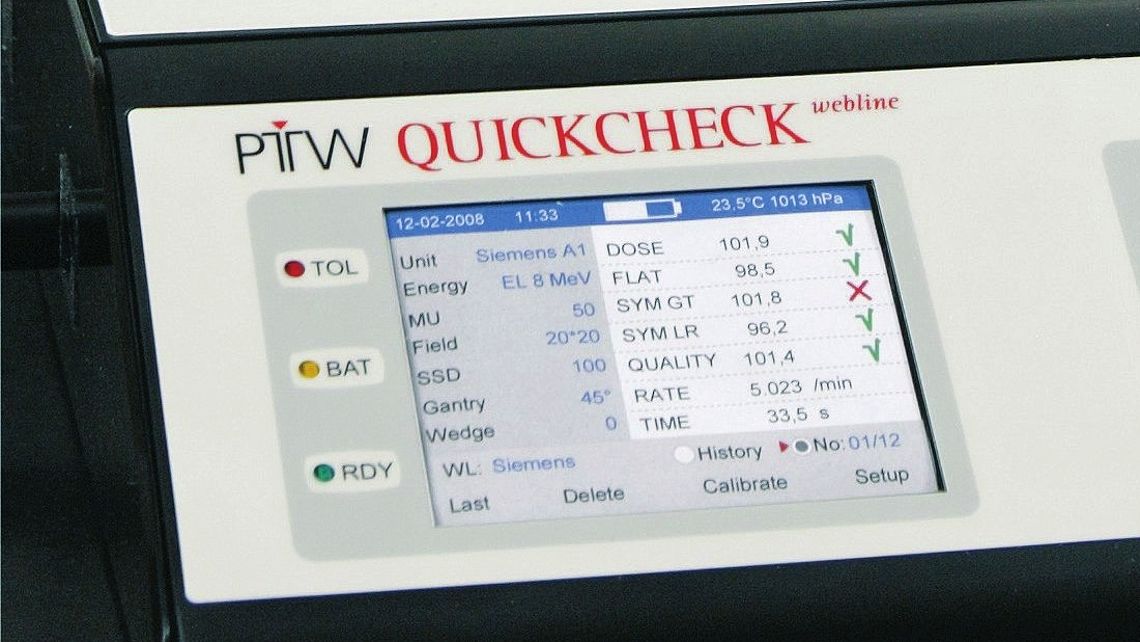

Immediate, real-time feedback on measurement results via large TFT display with LED status indicators

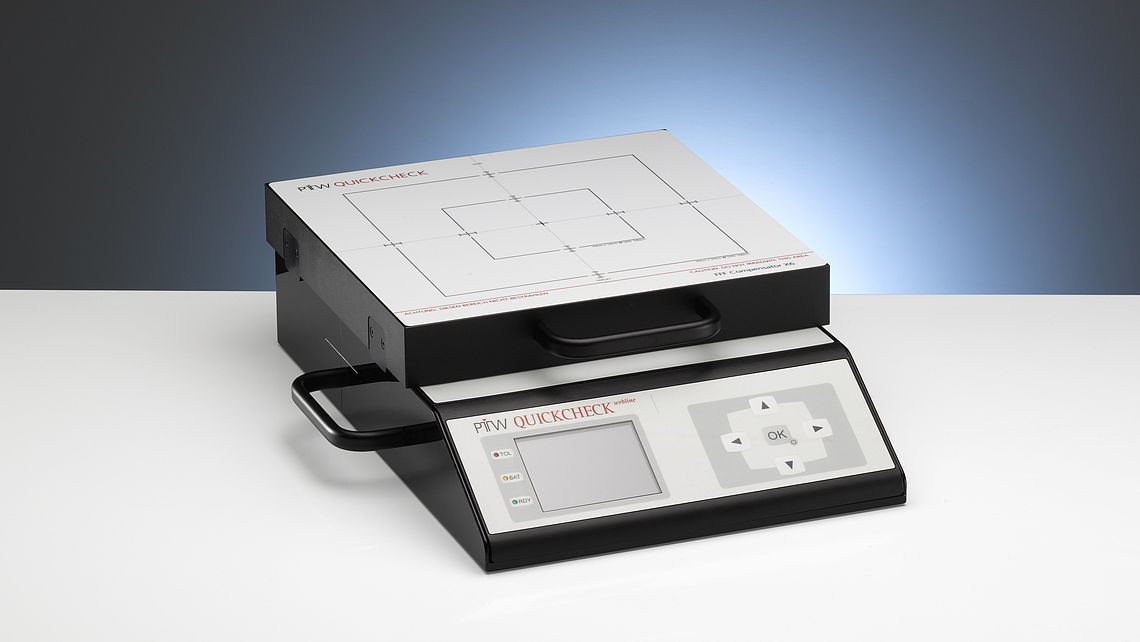

QUICKCHECK webline Constancy Test Device with FFF compensator

3 / 7

QUICKCHECK webline with FFF compensator

4 / 7

Immediate, real-time feedback on measurement results via large TFT display with LED status indicators.

5 / 7

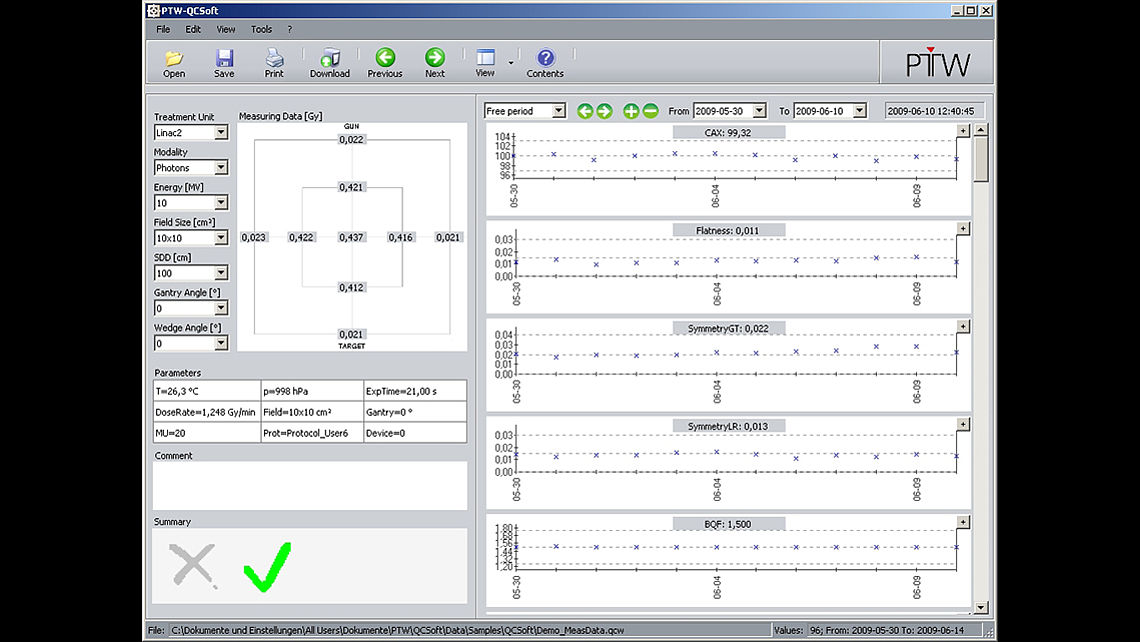

QUICKCHECK software: Detailed trend analysis, neatly arranged on one screen.

QUICKCHECK webline Constancy Test Device

6 / 7

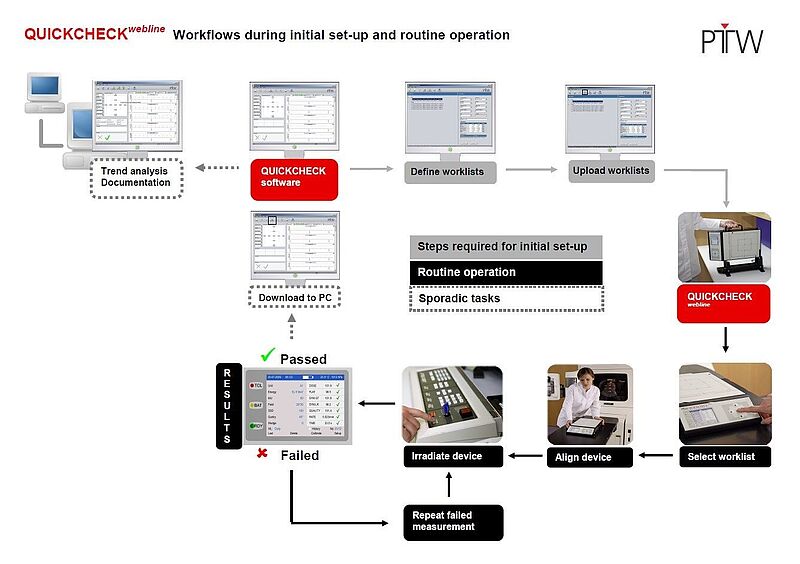

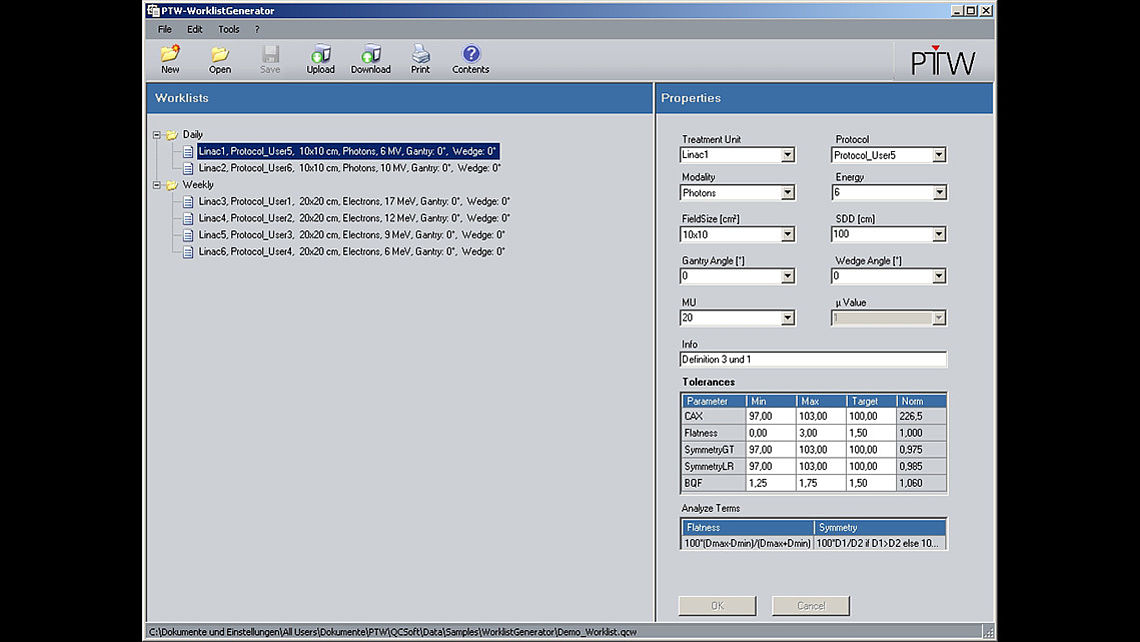

Fully automated, trigger-controlled workflow based on user-defined worklists. Once set up, immediately ready for everyday use!

7 / 7

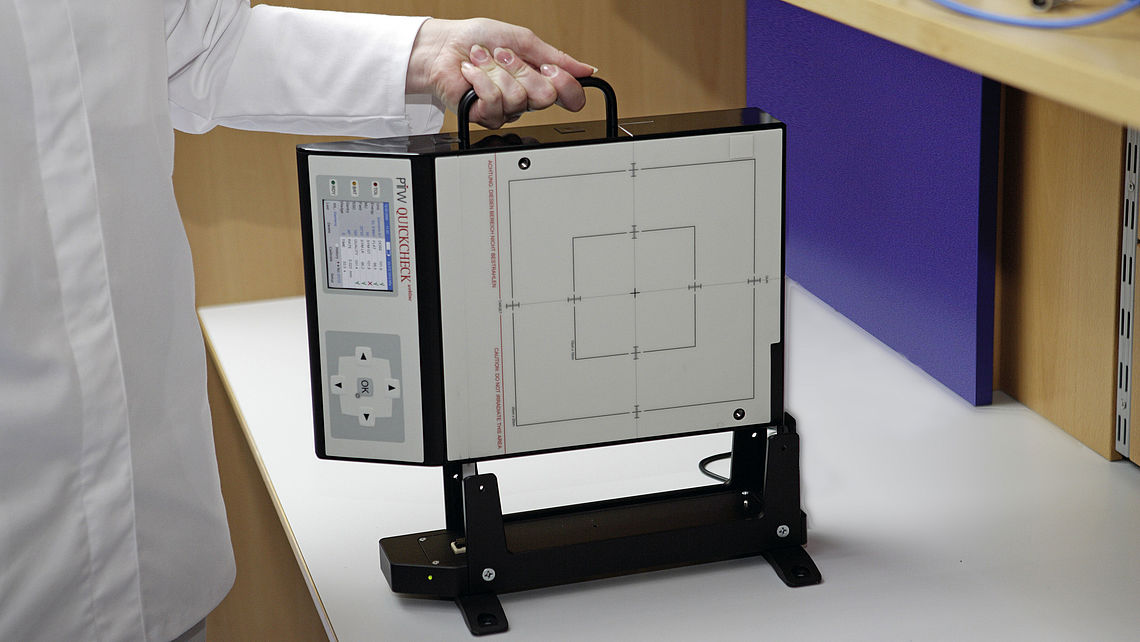

QUICKCHECK webline with docking station

Workflows

Clinical Reference

Using QUICKCHECK webline for daily QA on LINACS with FFF beams

Accessories

QUICKCHECK^webline® standalone daily linear accelerator check device with enhanced network capability
External power supply and connection cables
Battery packs
QUICKCHECK software with trend analysis

Track-it is a web application for managing QA reports and data in radiotherapy and radiology institutions. Data from measurement devices and results from tests carried out manually are summarized in reports and displayed in trend diagrams. A dashboard and logbooks additionally help in monitoring the status of QA-related work.

Floor/wall mountable docking station
Functionally designed docking station for convenient storage and recharging of your QUICKCHECK^webline®
FFF compensators
For constancy tests of flattening filter free (FFF) radiation fields. By using a QUICKCHECK FFF compensator, all QUICKCHECK measurements can be performed as usual. The compensator can easily be used by placing it on top of the QUICKCHECK^webline® device. FFF compensators are available for X6 and X10 FFF radiation fields.
QUICKCHECK^webline® gantry mounts
Linear accelerator type-specific gantry mounts for constancy checks at various gantry angles

Specifications

Device type	Constancy test device
Constancy tests supported	central axis dose, radiation quality, symmetry, flatness, wedge angle (fixed and dynamic)
Dosimetry protocols	AAPM TG-45, AFSSAPS No 93 IEC 60976, Elekta, Siemens, Varian
Measured quantities	dose, dose rate, exposure time, temperature, air pressure
Detector type	Vented ionization chambers, air density compensated
Number of detectors	13
Response	3.4 nC/Gy (typical)
Display	TFT colour display 70 mm x 53 mm
Interfaces	LAN (TCP/IP), USB, RS232
Internal memory	10,000 measurements before download is required
Power supply	4 rechargeable batteries AA (NiMH), External 7.5 VDC power supply (100 ... 240 V, 400 mA) for battery charging and standby operation
Outer dimensions	380 mm x 254 mm x 67 mm
Weight	5.5 kg

Field sizes	(10 x 10) cm², (20 x 20) cm²
Nominal range of dose rate	(0.5 ... 10) Gy/min (1 ... 25) Gy/min with FFF Compensator
Nominal energy range	(4 ... 25) MV Photons, (4 ...10) MV Photons with FFF Compensator (4 ... 25) MeV Electrons, ⁶⁰Co
Temperature range	(10 ... 40) °C, (50 ... 95) °F
Humidity range	(10 ... 80) %, max 20 g/m³
Air pressure range	(540 ... 1060) hPa

Operating systems	- Windows 7 Professional x32/x64 - Windows 8 / 8.1 Pro x32/x64 - Windows 10 Pro x32/x64 with recent Service Packs and Updates For a complete list of all operating systems approved for this software, please refer to the Release Notes on the installation CD
Processor	min. Pentium IV processor, 2 GHz or compatible processor
RAM	2 GB RAM recommended 4 GB
Hard disk	min. 100 MB of free space for QUICKCHECK and min. 2 GB of free space for .NET Framework 4.5.1
Graphics	SXGA 1280 x 1024 or higher resolution default font size enabled
Software	PDF viewer
