CTDI Equipment

For superior accuracy and excellent resolution in CT dosimetry

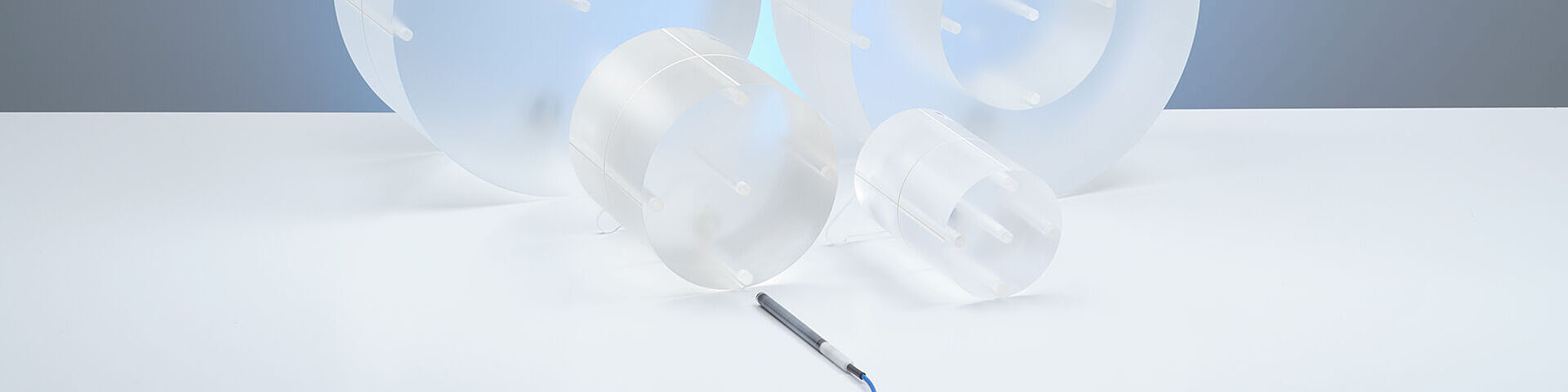

Measurements of the dose area product (DLP) acc. to IEC 61223-3-5 and IEC 60601-2-44 can be performed in combination with the NOMEX Dosemeter or UNIDOS Tango or UNIDOS Romeo. For CTDI calculations, the CTDI head and/or body phantom suitable for adult and pediatric applications is used with the 100 mm CT chamber, which is inserted into one of the five holes of the phantom. The 300 mm long CT chamber is used for dose length product (DLP) measurements free in air.

Technical Specifications

30009	CT ion chamber 3.14 cm³ , 100 mm long, connecting system BNT, TNC or M
30017	CT ion chamber 9.3 cm³, 300 mm long, connecting system BNT, TNC, M or L
T40016	CT body measuring phantom
T40017	CT head measuring phantom
T40027	CT head & body phantom
T40073	Pediatric CT Head Phantom

T40016.1.010	Carrying case for body measuring phantom
T40017.1.010	Carrying case for head measuring phantom
T40027.1.050	Carrying case for head & body phantom
