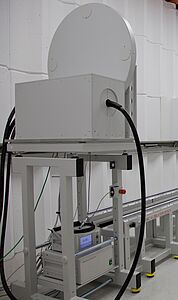

X-Ray Tube Support

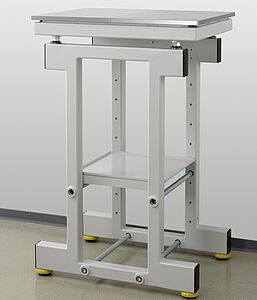

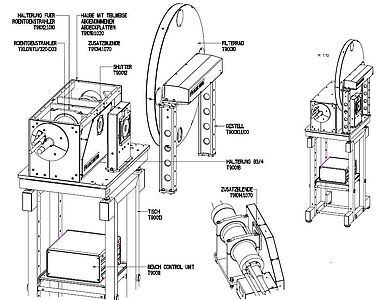

The X-ray tube support is a key component of an X-ray irradiator consisting of a table, tube holder, 8 mm Pb shielding and 3 sets of diaphragms incl. holder, prepared for placement of X-Ray Shutter, Filter Wheel and Monitor Chamber.

• Custom design for different X-ray tubes
• Optimal usage of space in the lab
• Optional reinforced shielding (eS) of the baseplate to protect electronics beneath

System includes

• 4 sets of diaphragms (base field Ø 10cm, variable fields Ø 2, 5 and 8cm)
• Shielding hood, 8mm Pb
• X-Ray tube holder
• Holders for monitor chamber, additional filters and diaphragms

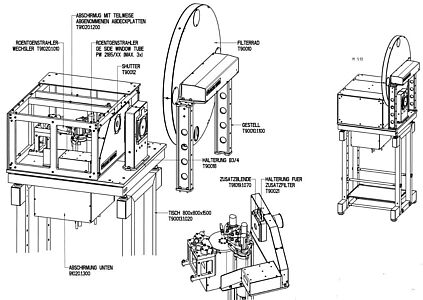

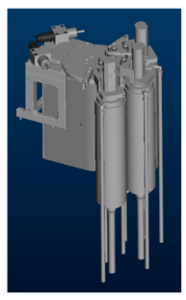

• 1 close-to-focus-holder for manual application of filters right after the 1^st diaphragm with the following irradiators: GE ISOVOLT MXR320/26 (L981288) and MXR320/26eS (L981573), GE ISOVOLT 160 (L981442), GE ISOVOLT 225 (L981383), Mammo tube changer for XRD Eigenmann PW21xx (L981437), BalteauNDT TSD320/5 (L981409)

X-Ray Shutter, Filter Wheel and Monitor Chamber are not included and need to be ordered separately.
