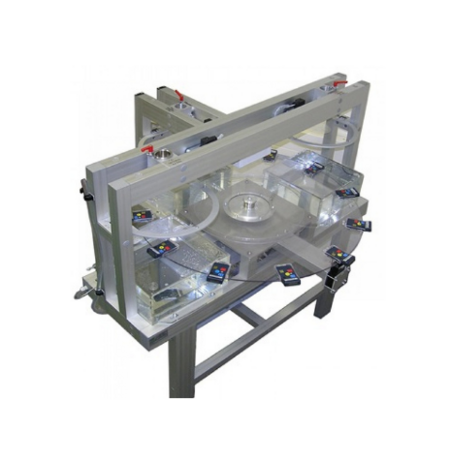

BC-03 Beta Radiation Calibration System

The Beta Radiation Calibration System is used for comfortable and safe calibration of dosimeters with beta radiation sources. It is designed to perform electronic personal dosimeters calibration in fully automatic process.

The BC-03 Personal Dosimeter Calibrator is designed for the comfortable and safe calibration of dosimeters measuring Hp(0.07) in accordance with ISO 6980.

The main functional parts are:

• Three reference sources emitting pure beta radiation
• Beam flattening filters matching the appropriate reference source
• Set of standardized phantoms (human body simulation)
• Electronic dosimeter reader
• Control unit
• Rotating table
• DARS Application software
• Environmental sensors (temperature, pressure, humidity)
• Safety interlocks interfaces
